Quick Start Manual Yunio X50

Getting Started
  1. Fill the water tank: You'll find the watertank on the leftside of the machine. Open the lid on top of the machine. Pull the watertank up and fill it under the tap or fill it with mineral water without removing the tank. Don't put any water in the bean holder or the small lid infront of the bean holder.

  2. Fill the bean holder: The container on top needs to be filled with beans (please don't fill it with water).

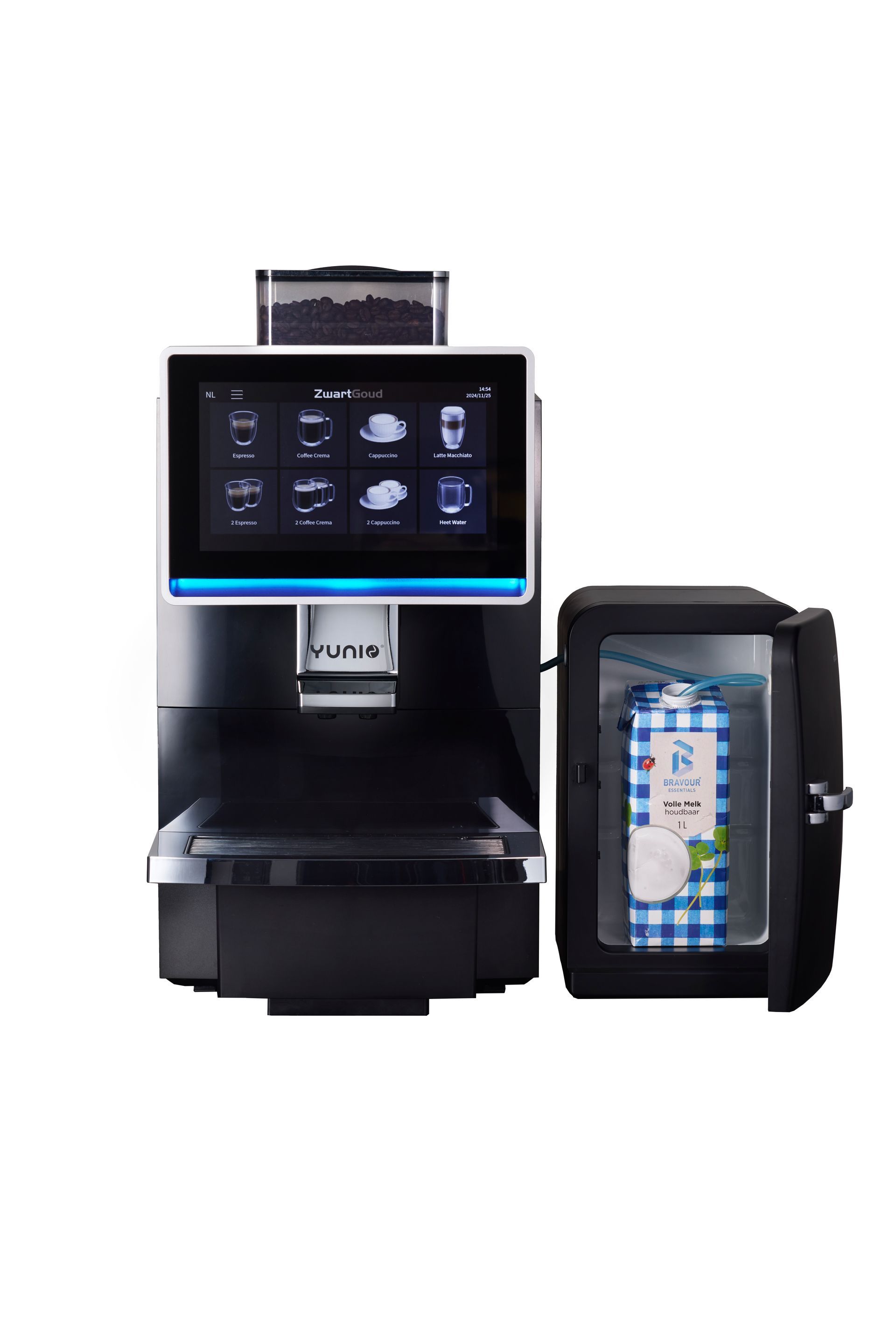

  3. Fill the fridge: Put 1 ltr of cold milk in the fridge on the right side of the machine and insert the tube in the milk. Don't forget to power on the fridge.

  4. Starting the machine: Insert the plug, and put the main switch on at  the back of the machine.

  5. Wait till the machine is warmed up and make yourself a nice coffee, enjoy!

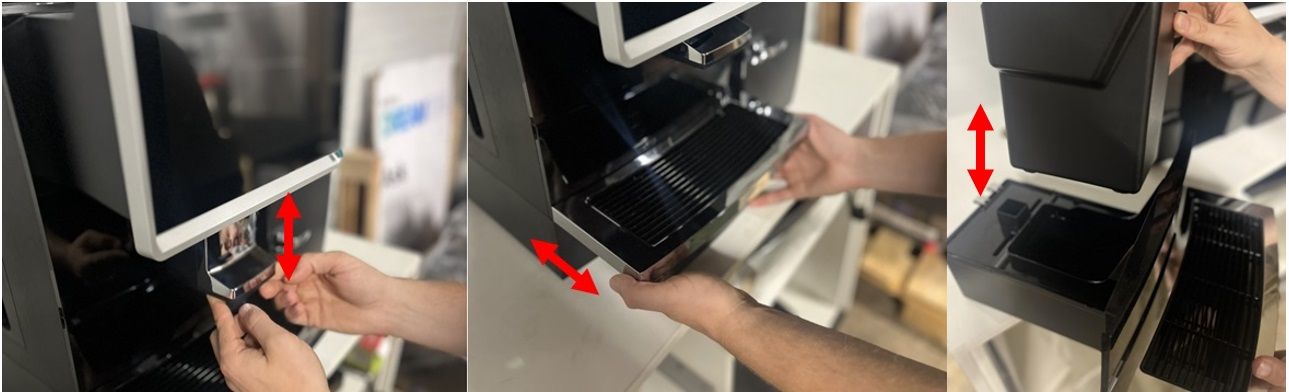

How do I empty the driptray and the coffee ground container?
  1. Gentle push the coffee output up.

  2. Pull the drainingtray towards you.

  3. Take out the tray and container and empty them. The ground container and chrome top can be removed from the tray for easy emptying.

  4. Gentle push the tray and container back in the machine and pull the coffee output down to the desired hight.


At the end of the day:
  1. Remove the tube from the milk and put it in a cup of water.

  2. Make a Latte, so the tube is filled with water overnight.

  3. Take out the tray and container, empty them and put them back in the machine.
